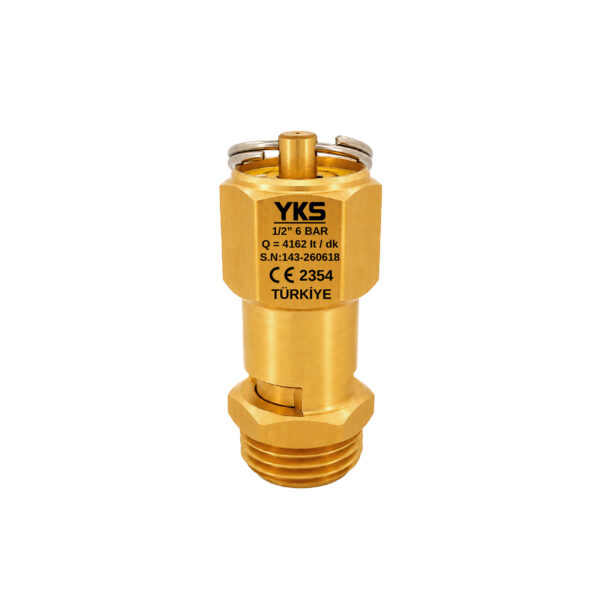

1/2″ 6 Bar Safety Valve
Ürünü Hangi Amaçla Kullanmak İstiyorsunuz:
Sertifika Al Datasheet Stoklu Bayilerimiz Online Al
Our products are delivered with a certificate that includes technical specifications and serial numbers.
Our products are CE certified according to the 2014/68 EU Pressure Equipment Directive.
Please specify the application area when placing an order.
Technical Specifications of 1/2″ 6 Bar Safety Valve
| Product Code | : | YKS-143 |
| Connection Size | : | 1/2″ |
| Relief Pressure | : | 6 BAR |
| Air Relief Capacity | : | 4162 lt/min |
| Package Quantity | : | 10 Units |
| Body Material | : | Brass (MS 58) |
| Spring Quality | : | Stainless Steel |
| Sealing | : | Silicone |
| Optional Sealing | : | Viton – Teflon – Nitrile |
| Orifice Diameter | : | 10.8mm |
| Operating Temperature | : | – 50 ° / +250 ° |
| Maximum Opening Value | : | + %7 |
| Closing Pressure Value | : | – %20 |
| Body Design Pressure | : | 50 BAR (725 PSI) |
| Standard | : | TS EN 13445-3 |
| Directive | : | 2014/68 EU |
| General Applications | : | Air – Water – Steam – Oil |
| Specific Liquid Applications | : | Non-corrosive Liquids |
| Specific Gas Applications | : | Non-hazardous Gases |
| Outer Diameter | : | 26mm (22 Hexagon) |
| Length | : | 57 mm |
| Weight | : | 100 g |
