MAY-75 Silo Truck Check Valve
60,00 € + KDV
Ürün siparişleriniz de kullanım alanının belirtilmesini rica ederiz.
Sertifika Al Datasheet Stoklu Bayilerimiz Online Al

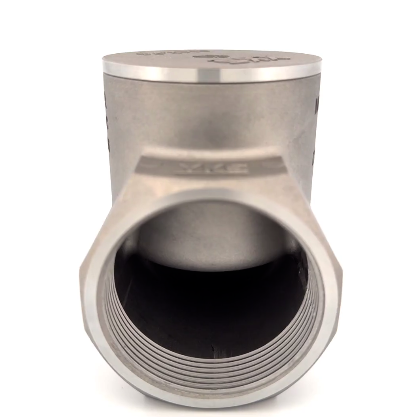

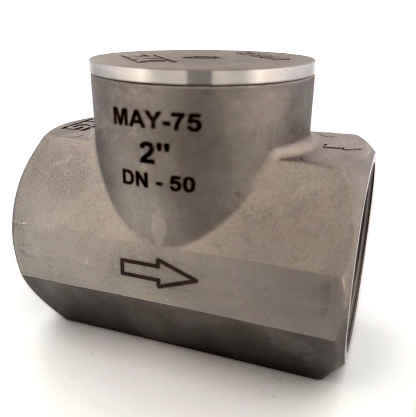

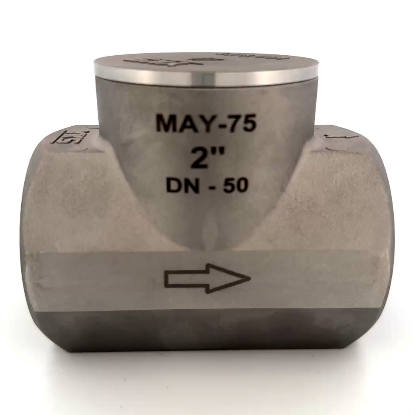

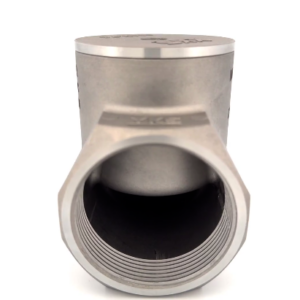

The MAY-75 Silo Truck Check Valve is manufactured using high-quality aluminum (EN AC 46000), pressed in 500-ton high-pressure machines and precisely machined on CNC equipment. It is designed to provide high air flow capacity and to operate under a working pressure of 30 bar.
Thanks to its specially designed, impact-resistant sealing system, it ensures durability up to +250°C without oil absorption. Developed specifically for silo truck applications by YKS engineers, the MAY-75 Series check valves offer a reliable solution for silo truck systems.
TECHNICAL SPECIFICATIONS OF MAY SERIES SILO TRUCK CHECK VALVE
| PRODUCT CODE | MAY-75 |
| PIPE CONNECTION SIZE | G 2″ FEMALE ( DN -50 ) |
| TANK CONNECTION SIZE | G 2″ FEMALE ( DN -50 ) |
| BODY MATERIAL | ALUMINUM (EN AC 46000) |
| SPRING QUALITY | STAINLESS STEEL |
| SEALING | YKS CUSTOM DESIGN |
| OPERATING TEMPERATURE | -50 / + 250 °C |

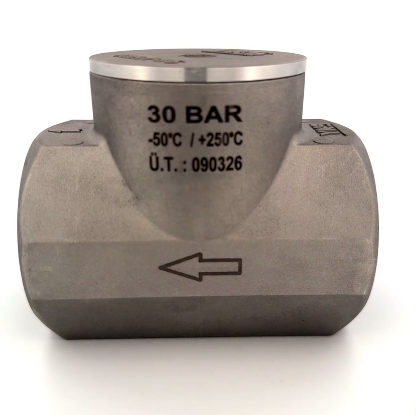

| WORKING PRESSURE | 30 BAR |
| BODY DESIGN PRESSURE | 60 BAR |
| GENERAL APPLICATIONS | AIR – WATER – STEAM – OIL |
| PRODUCT WEIGHT | 700 g |
| PACKAGE QUANTITY | 20 pcs |
MAY-70 SILO TRUCK CHECK VALVE SPARE PARTS
 |
Product Code | Part Name | Package Quantity | Price |

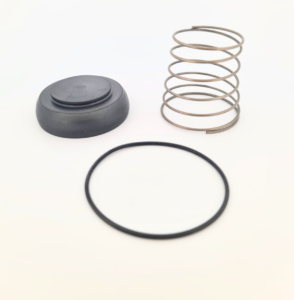

| MAY-75/A | INTERNAL KIT (SEAL – SPRING – O-RING) | 10 PCS | 30,00 € |
