Description
• The YKS 1″ 12 Bar Safety Valve can safely and precisely discharge pressure increases above 12 bar in systems operating with fluids such as water, steam, air, oil, and nitrogen.
YKS Safety Valves are widely used in various applications including air compressors, pressure tanks, mechanical installations, nitrogen generators, steam generators, industrial machines, fire suppression systems, fire pumps, medical and sterilization devices, water treatment systems, vehicle-mounted equipment, construction machinery, rail vehicles, pharmaceutical industry, cosmetics industry, defense industry, food industry, solar energy systems, mining, petroleum, industrial applications, automotive, marine, aviation, railway, and construction sectors.

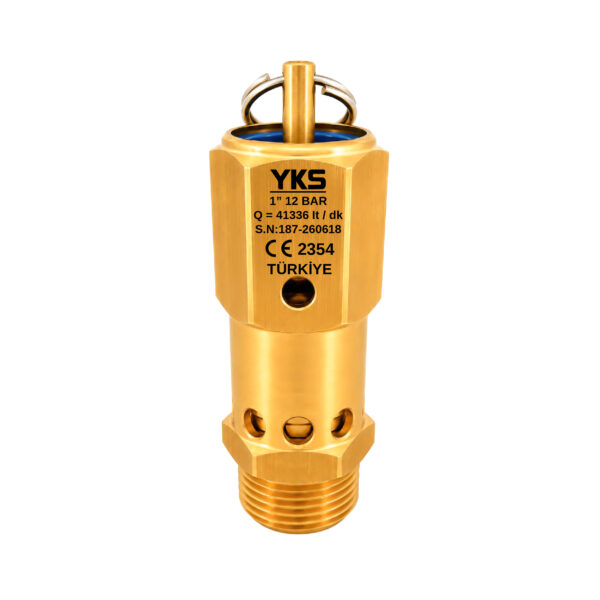

1″ 12 Bar CE Certified Sealed Brass Safety Valve
Ürün siparişleriniz de kullanım alanının belirtilmesini rica ederiz.
1” 12 BAR CE Certified Sealed Brass Safety Valve Technical Specifications
| PRODUCT CODE | : | YKS-187 |
| CONNECTION SIZE | : | G 1” ( BSPP 55° ) |
| DISCHARGE STARTING PRESSURE | : | 12 BAR |
| AIR RELEASE CAPACITY | : | 41336 lt / min |
| PACKAGE QUANTITY | : | 1 UNIT |
| BODY MATERIAL | : | BRASS (MS 58) |
| SPRING QUALITY | : | STAINLESS |
| SEALING | : | SILICON |
| SEALING OPTIONAL | : | VITON – TEFLON – NITRILE |
| ORIFACE DIAMETER | : | 10.8 mm |
| OPERATING TEMPERATURE | : | – 50 ° / +250 ° |
| MAX. OPENING VALUE | : | + %7 |
| SHUTDOWN PRESSURE VALUE | : | – %20 |
| BODY DESING PRESSURE | : | 50 BAR (725 PSİ) |
| STANDARD | : | TS EN 13445-3 |
| DIRECTIVE | : | 2014/68/EU |
| GENERAL AREAS OF USE | : | AIR – WATER – STEAM- OIL |
| SPECIAL LIQUID USE AREAS | : | NON-CORRSIVE LIQUIDS |
| SPECIAL GAS USES | : | NON-HAZARDOUS GASES |
| OUTER DIAMETER | : | 42 mm (36 HEXOGEN) |
| LENGHT | : | 118 mm |
| WEIGHT | : | 495 GR |
Standard Thread Type: Whitworth Parallel Pipe Thread (DIN ISO 228, BSPP – British Standard Pipe Parallel), compliant with 55° standards.
Optional: NPT threading available (subject to quantity-based price difference).
All our products are supplied with a certificate including technical specifications and serial number.
Our products are CE Certified in compliance with the 2014/68/EU Pressure Equipment Directive.
